6 Cavity Receptacle and Plug Kit, Grey GRY GY. 6 Position, way, cavity. Useful for inline connections of up to 13 amps continuous each cavity. Amphenol AT AT6-N comparable to Deutsch DT DT6-N. Cost effective solution for automotive, racing, and motorsport wiring connectors. Lightweight engineered plastic electrical connector kit.

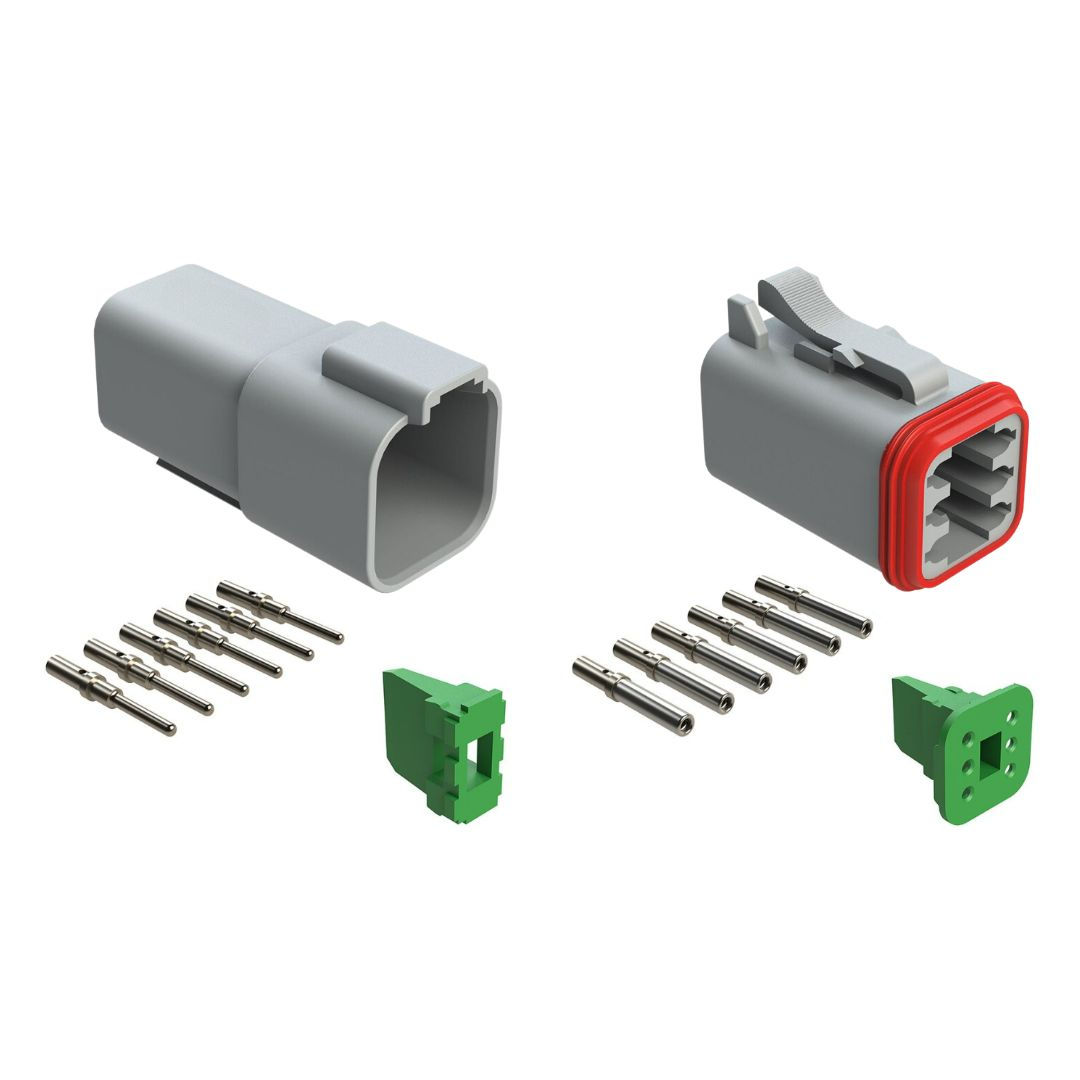

Kit Includes:
(1) 6 Cavity Receptacle Connector
(1) 6 Cavity Plug Connector
(1) Pin Receptacle Wedgelock
(1) Socket Plug Wedgelock
(6) Pin, Machined, Size 16, 16-20awg, Nickel Plated
(6) Socket, Machined, Size 16, 16-20awg, Nickel Plated

Comparable (Interchangeable) Part # List:
  • MSD Part # 8180, holley.com - $30
  • MSD8180, jerrybickel.com - $20
  • MSD-8180, summit.com - $27

High-performance, cost-effective solution specifically designed for moderate current applications, accepting 14-20awg wire. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material is durable and has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

AT Connectors retaining AT Wedgelocks are compatible with Deutsch DT Connectors retaining DT Wedgelocks!

6 Cavity AT/DT Connector Kit, Color Choice

$7.95Price
Color

  • Color Option(s)

    Grey

    Black
    Cavities 6
    Strain Relief No

    Min. Daim. Heatshrink

    to fit over Strain Relief

    NA

    Operating

    Temperature

    -55°C to +125°C

    @ rated current
    Maximum Current 13A Continuous

    Contact Size

    		 16

    Terminal Wire Size

    Solid

    		 14-20awg

    Terminal Wire Size

    Stamped

    16-20awg
