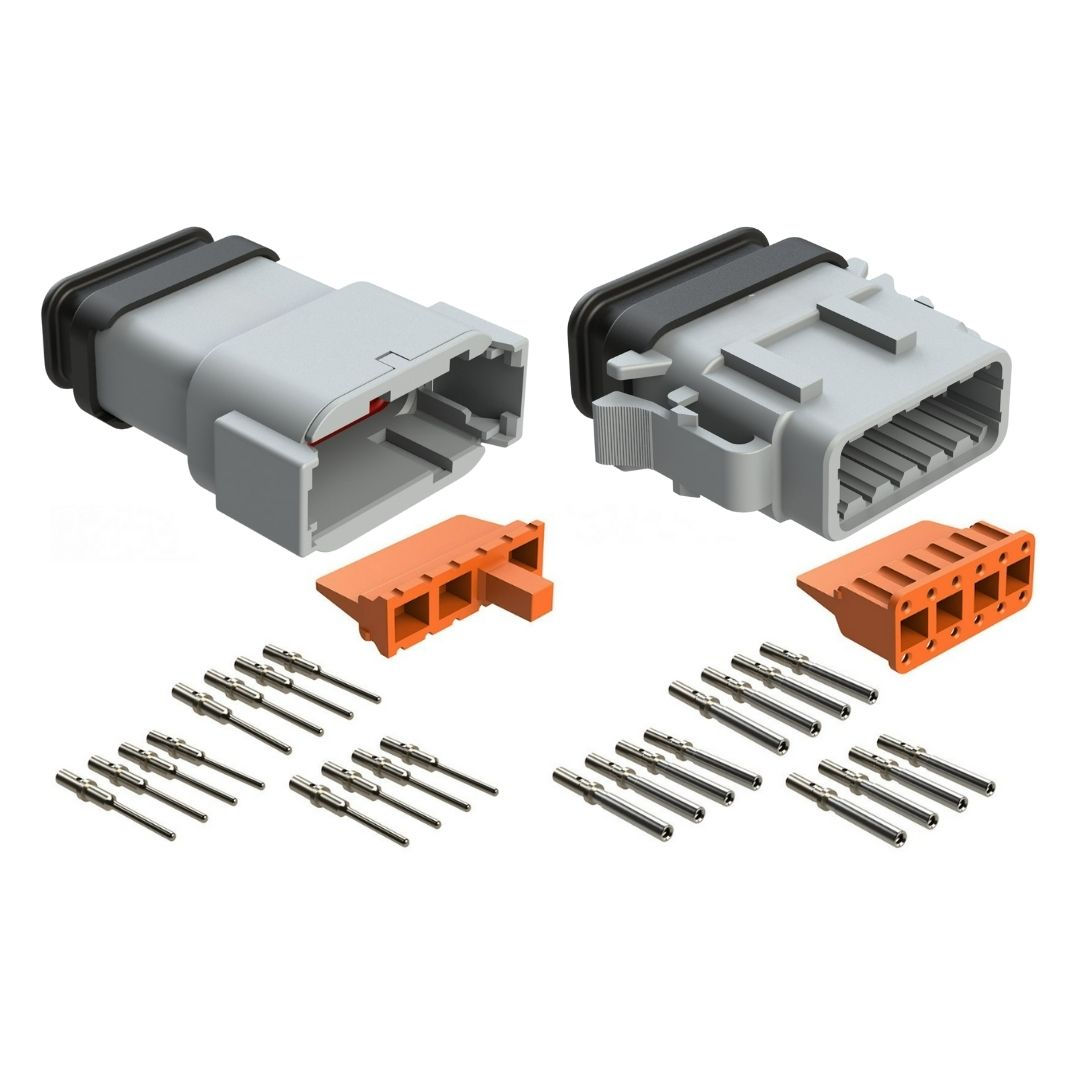

Kit Includes:

(1) Plug of Color Choice
(1) Receptacle of matching Color
(1) Socket Plug Wedgelock
(1) Pin Receptacle Wedgelock
(12) Socket Terminal, Size 20, Solid, Nickel Plated (22-20awg)
(12) Pin Terminal, Size 20, Solid, Nickel Plated (22-20awg)


High-performance, cost-effective solution specifically designed for smaller AWG applications. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material that is not only durable, but has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.



ATM Connectors retaining ATM Wedgelocks are compatible with Deutsch DTM Connectors retaining DTM Wedgelocks!

12 Cavity ATM/DTM Strain Relief Connector Kit, Key/Color Choice

$17.81Price
Color
  • Color Option(s)

    Grey - KEY A

    Black - KEY B

    Green - KEY C

    Brown - KEY D

    Cavities 12
    Strain Relief YES

    Min. Daim. Heatshrink

    to fit over Strain Relief

    Unrecovered 0.XXX"

    (Unshrunk)

    Operating

    Temperature

    -55°C to +125°C

    @ rated current

    Maximum Current 7.5A Continuous

    Contact Size

    20

    Terminal Wire Size

    Solid

    20-22awg

    Terminal Wire Size

    Stamped

    16-22awg
