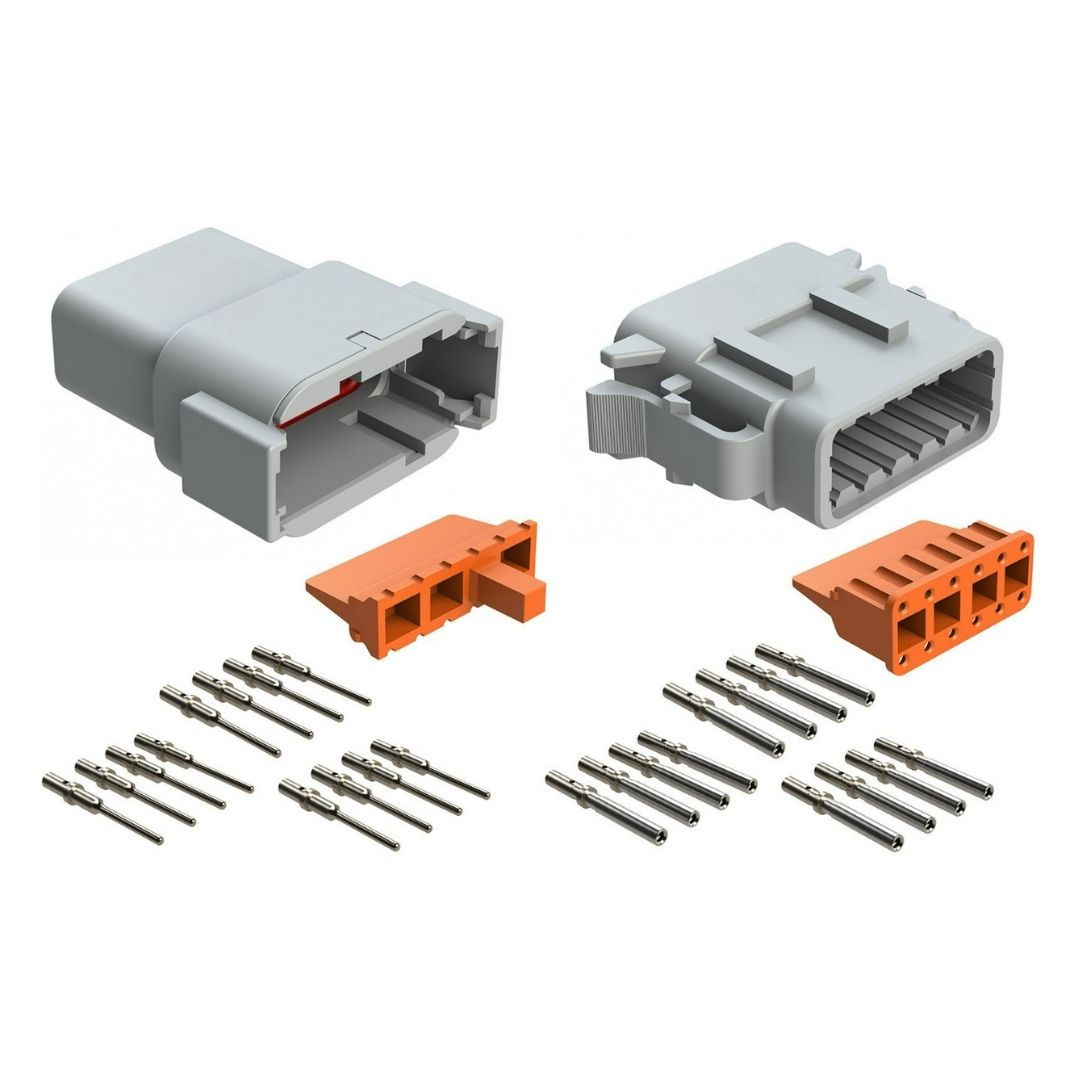

12 Cavity Receptacle and Plug Complete Kit, Grey GRY GY, Key A. 12 Position, way, cavity. Useful for sensors and other inline connections of up to 7.5 amps continuous each cavity. Amphenol ATM ATM12-N comparable to Deutsch DTM DTM12-N. Cost effective solution for automotive, racing, and motorsport wiring connectors. Lightweight engineered plastic electrical connector kit.
Kit Includes:
(1) Receptacle Connector
(1) Plug Connector
(1) Pin Receptacle Wedgelock
(1) Socket Plug Wedgelock
(12) Pin, Machined, Size 20, 20-22awg, Nickel Plated
(12) Socket, Machined, Size 20, 20-22awg, Nickel Plated

High-performance, cost-effective solution specifically designed for low current applications, accepting 16-22awg wire. The connector design incorporates an integral latching system that ensures a definitive electrical and mechanical connection. Connector housings are manufactured with a thermoplastic material is durable and has excellent UV resistance, dielectric/mechanical properties and environmentally RoHS compliant. The sealing system is comprised of an internal and rear silicone, multi-sealing perimeter against environmental ingress. Contacts are derived from quality copper alloy to ensure an electrically-reliable connection.

ATM Connectors retaining ATM Wedgelocks are compatible with Deutsch DTM Connectors retaining DTM Wedgelocks!

12 Cavity ATM/DTM Connector Kit, Keyed, Color Choice

$13.48Price
Color
  • Color Grey (GRY)
    Cavities 12
    Strain Relief No
    Maximum Current 7.5A Continuous
    Operating Temperature -55°C to +125°C @ rated current
    Contact Size 20
    Terminal Wire Size, Solid 20-22awg
    Terminal Wire Size, Stamped 16-22awg
